Mine's emphasizes on engine with great response.

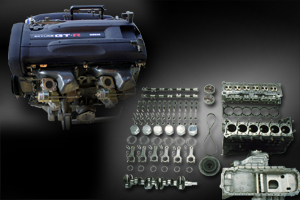

The history of data that continued over specified component part revealed
a sufficient amount of feedback to complete Mine's RB26 engine. We prepared the Stage I with a maximum of 480H.P.(GT-SS turbine) specification
and stage II with a maximum of 580H.P.(GT2530 turbine) specification.

*The price shown above does not include the base engine price. The additional payment is required.

<Warranty>
All maintenances after engine loading (all "Oil & Fats" are included) are performed at our company and it is warrantied for a year and/or up to 10,000km as within the limits of the applications.
The trouble by the installation of parts other than specified by our company such as; gear shift mistakes, trouble with oil temperature and by poor oil-pressure management, and trouble with any auxiliary components other than the engine is not included in our specified warranty.
*This warranty is only applicable in Japan.

Part

Material and Contents

STAGE-I

STAGE- II

CAMSHAFT GEAR

Mine's Original

CAMSHAFT SHORE

IN 252¬° / LIFT 10.05mm , EX 252¬° / LIFT 10.05mm

---

IN 260¬° / LIFT 10.2mm,  EX 252¬° / LIFT 9.5mm

---

CAMSHAFT MACHINED

---

VALVE SPRING

Strengthened

---

VALVE GUIDE

PBB

VALVE SHEET

BERYLLIUM CU

---

VALVE SHEET CUTTING

Machined

VALVE REFACE

Machined

MODIFICATION of PORT

Machined

---

COMBUSTION CHAMBER ADJUSTING

Machined

---

HEAD BALANCING PLANE RESEARCH

Machined

HEAD GASKET

METAL

CYLINDER HEAD BOLT

Stud type strengthened

---

CRANK BOLT

Stud type strengthened

---

PISTON

Lightweight forged

CONNECTING ROD

Lightweight forged

CRANK PROCESSING AND BALANCE

D counter section form modification

CRANK WPC PROCESSING

Machined

PULLEY BALANCE

Machined

METAL

Surface machined

BLOCK BALANCING PLANE RESEARCH

Machined

DUMMY BORING

Machined

PLATEAU HORNING / HONING

Machined

OIL PUMP

34N1

---

NISMO strengthened part

---

TIMING BELT

Strengthened

OIL PAN BUFFLE

Mine's Original

ENGINE DECOMPOSED OVERHAUL

THERMOSTAT

NISMO

SPARKPLUGS

NGK

WATER PUMP

34 N1

THERMAL LAPPING
